Customized ZLG Adjustable Vibrating Fluidized Bed Dryer Xiaoli Drying Solutions

Customized ZLG Adjustable Vibrating Fluidized Bed Dryer Xiaoli Drying Solutions

The ZLG Series Adjustable Vibrating Fluidized Bed Dryer by Xiaoli Drying is a versatile, high-efficiency thermal processing system designed for the continuous drying and cooling of granular and powder materials. Recognizing that every industrial process has unique requirements, our Customized ZLG Solutions offer unparalleled flexibility in machine configuration, material grade, and operational parameters to ensure maximum productivity and product quality.

Working Principle

Material is fed into the machine via the inlet and moves forward continuously along the horizontal fluidized bed surface under the influence of precisely tuned vibration force. Hot air is forced upward through the perforated fluid bed, making direct contact with the wet material. This process facilitates rapid heat and mass transfer. The moisture-laden air is purified through a cyclone separator before being exhausted, while the dried product is discharged through the outlet.

Engineered for Material Integrity

Traditional drying methods often lead to particle attrition or surface damage due to aggressive mechanical agitation. The ZLG series solves this by using a "throwing" motion induced by dual vibration motors. The material moves forward in a semi-suspended state, significantly reducing friction and impact, which preserves the crystal form and surface quality of the product.

Core Technical Advantages

• Precision Customization: We offer tailor-made designs including specialized feeder systems, multi-stage cooling zones, and integrated heat recovery units to match your specific factory footprint and energy sources.

• Superior Energy Efficiency (30%–60% Savings): The optimized mechanical-to-thermal energy conversion ratio ensures that the ZLG series significantly out-performs traditional dryers, drastically reducing your operational overhead.

• Gentle Material Handling: The vibration-induced "throwing" motion moves materials in a semi-suspended state. This prevents particle attrition, making it the premier choice for fragile crystals, seeds, and irregular granules.

• Uniform Fluidization Technology: Our advanced bed plate design eliminates "dead zones" and "channeling," ensuring that 100% of the material receives uniform heat treatment for consistent final moisture content.

• Robust Stainless Steel Construction: Available in SUS304, SUS316L, or Titanium, with internal mirror-polishing ($Ra < 0.4mu m$) to meet strict GMP and Food Safety requirements.

• Fully Enclosed & Environmental Friendly: The airtight structural design prevents dust leakage and cross-contamination, ensuring a clean and safe industrial working environment.

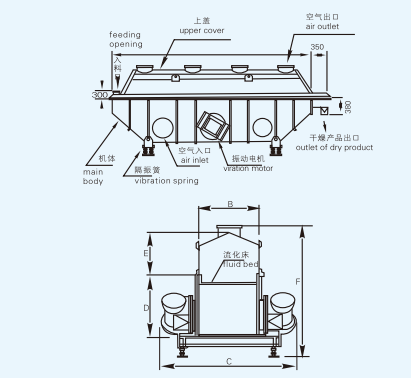

Technical Specifications (ZLG Series)

Industrial Applications

• Chemicals & Fertilizers: Citric acid, MSG, ammonium sulfate, compound fertilizers, and borax.

• Food & Agriculture: Refined sugar, salt, soy meal, seeds, and dehydrated vegetables.

• Pharmaceuticals: Herbal extracts, antibiotic crystals, and medicinal granules.

• Minerals & Mining: Slag, metallic powders, and mineral salts.

Why Choose Xiaoli Drying Solutions?

At Changzhou Xiaoli Drying Equipment Co., Ltd., we don't just sell machines; we provide engineered solutions. Our team of experts works closely with your technical staff to conduct material testing and process simulation. With our Customized ZLG Series, you gain a reliable, low-maintenance partner designed to scale with your production demands while delivering the highest ROI in the drying industry.
